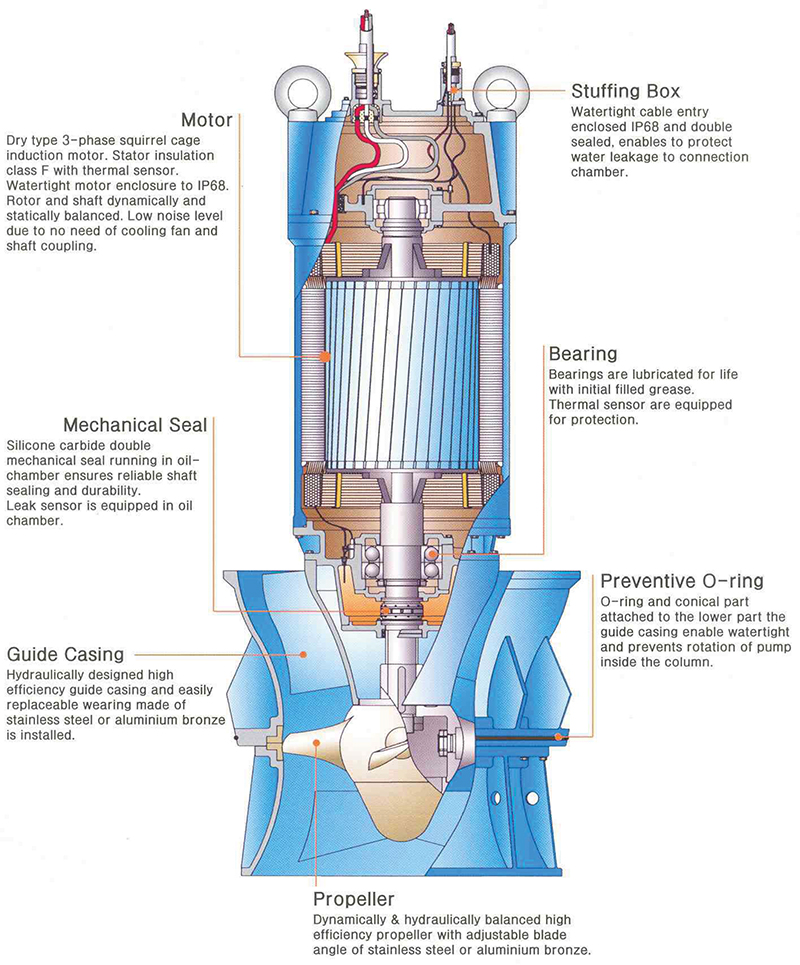

SPP Series Submersible Propeller Pumps Submersible Pump: Max/ 700m³/m, Disch. Bore: Max. 2000mm, Motor Output: Max. 1200kW

SAMJIN SPP Series, SMP Series and SX Series (Submersible Propeller Pumps and Submersible Mixed Flow Pumps) are manufactured based on the optimized design by our research and have various advantages. These pumps have well known reputation for high reliability, long durability, economy and high efficiency. High quality and reliability are proven and guaranteed through rigid quality control programs, the latest manufacturing technology, long manufacturing experience and long life operation of these products. Applications range from flood water control, agricultural, irrigation, and industrial water transfer and large volumes water transfer with head up to 30m for various conditions.

Features

Simple structure and high efficiency
SAMJIN submersible propeller pumps and mixed flow pumps are designed on the basis of the latest flow design principle and assembled in a rigid integral unit. Thus it is very efficient to maintain the pumps due to easiness of assembling and disassembling work and the interchangeability of the parts.
Easy installation
Pump unit is easily installed in its column pipe where the pumps own weight keeps it seated firmly in a ledge at the base of the column. Thus the prevention of pump rotation can be carried out without additional anti-rotation stopper.
Reduction of construction & equipment costs
Unlike conventional pump, SAMJIN submersible propeller pumps and mixed flow pumps simplified station design and installation in a small space reduce construction and equipment costs substantially.
Easy maintenance and repair works
Since the pump and column pipe are design on the building block principle, the inspection and disassembling work can be done easily and promptly.
Low noise and vibration
Since the pump operates submerged and is direct coupled type, it is low noise and low vibration. Thus there is no environmental problem.

Uses

Flood water controlAgricultural water transferIrrigation water transferIndustrial water transferCooling water transfer and Large volumes wawter transfer for various conditions

Technical Specifications

Performance curve
Specification
Model Max. Capacity (㎥/min) Max. Head (m) Disch.Bore (mm) Column Pipe Dia(mm) Output(kW)
SPP-500H/L 30 / 32 10 / 6.7 500 700 11 - 55
SPP-600H/L 47 / 47 10 / 6.5 600 800 22 - 90
SPP-700H/L 78 / 72 10 / 6.6 700 900 30 - 132
SPP-800H/L 118 / 119 10 / 6.3 800 1000 65 - 210
SPP-900H/L 149 / 149 10 / 6.3 900 1200 75 - 250
SPP-1000H/L 180 / 190 10 / 6.6 1000 1200 110 - 300
SPP-1200H/L 225 / 225 10 / 6.5 1200 1350 132 - 400
SPP-1350H/L 275 / 270 10 / 6.4 1350 1500 150 - 500
SPP-1500H/L 340 / 370 10 / 6.5 1500 1650 200 - 600
SPP-1800H/L 460 / 470 10 / 6.5 1800 2000 300 - 800

Power source : 3Phase-50/60Hz-200/220/280/400/440/460/480/660/3000/3300/6000/6600V

Outline Dimensions

Model SPP-500H/L SPP-600H/L SPP-700H/L SPP-800H/L SPP-900H/L SPP-1000H/L SPP-1200H/L SPP-1350H/L SPP-1500H/L SPP-1800H/L
ΦDB 500 600 700 800 900 1000 1200 1350 1500 1800
Output 11~55 22~90 30~132 65~210 75~250 110~300 132~400 150~500 200~600 300~800
A max 1725 2150 2430 3050 3750 3980 4170 4800 5200 5800
B 250 300 300 350 400 500 500 550 600 600
C 150 200 200 250 250 300 300 300 350 350
ΦD 686 794 886 989 1187 1335 1335 1475 1635 1940
ΦE 610 693 790 883 1094 1205 1205 1344 1476 1839
ΦF 622 705 802 898 1110 1223 1223 1354 1486 1849
ΦG 700 800 900 1000 1200 1350 1350 1500 1650 2000
H min 350 400 450 50 600 675 675 750 830 1000
ΦJ 1250 1350 1450 1550 1800 1950 1950 2150 2300 3200
ΦK 850 950 1050 1150 1350 1500 1500 1650 1800 2200
L 500 550 650 750 850 900 950 1000 1150 1500
M 500 600 600 700 800 900 1000 1100 1200 1300
N 450 550 600 650 750 850 950 100 1100 1200
P 150 150 200 200 250 250 250 300 350 400
ΦQ 1150 1250 1350 1450 1700 1850 1850 2050 2200 3100
R 12-Φ27 12-Φ27 14-Φ27 14-Φ27 16-Φ27 18-Φ27 18-Φ27 18-Φ27 20-Φ27 24-Φ27
S min 500 700 800 1200 1600 1800 2000 2500 3100 3500

※ In some cases, figures and performance are subject to change without prior notice.

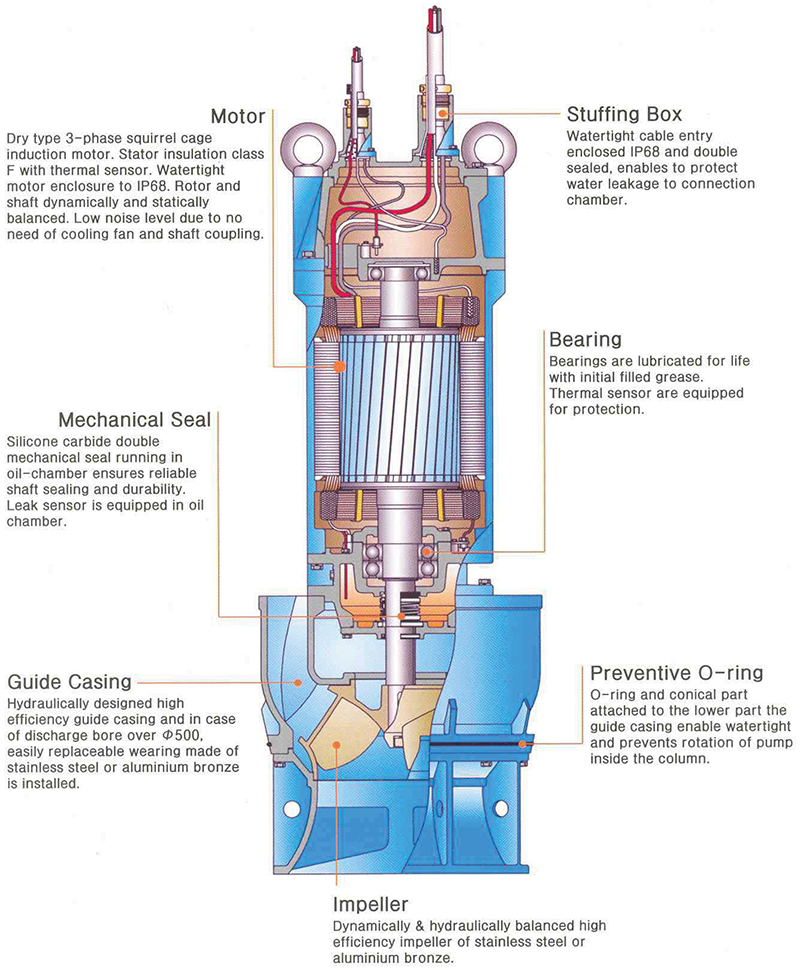

SMP Series Submersible Mixed Flow Pumps Disch. Flow: Max/ 350m³/m, Disch. Bore: Max. 1500mm, Motor Output: Max. 1200kW

Technical Specifications

Performance curve
Specification
Bore (mm) Model Output (kW) Head (m) Capacity (㎥/min) Pole (P)
250 SMP-250A-170-6P 17 8 8 6
SMP-250B-200-4P 20 10 8 4
SMP-250C-250-4P 25 12.5 8 4
SMP-250D-320-4P 32 16 8 4
300 SMP-300A-250-6P 25 8 12.5 6
SMP-300A-300-6P 30 10 12.5 6
SMP-300C-390-6P 39 12.5 12.5 6
SMP-300D-500-4P 50 16 12.5 4
400 SMP-400A-390-8P 39 8 20 8
SMP-400B-500-8P 50 10 20 8
SMP-400C-600-6P 60 12.5 20 6
SMP-400D-800-6P 80 16 20 6
500 SMP-500A-600-10P 60 8 31.5 10
SMP-500B-750-8P 75 10 31.5 8
SMP-500C-950-8P 95 12.5 31.5 8
SMP-500D-1200-6P 120 16 31.5 6
600 SMP-600A-850A-12P 85 8 45 12
SMP-600B-1100-10P 110 10 45 10
SMP-600C-1320-8P 132 12.5 45 8
SMP-600D-1700-8P 170 16 45 8
700 SMP-700A-1200-14P 120 8 63 14
SMP-700B-1500-12P 150 10 64 12
SMP-700C-1900-10P 190 12.5 65 10
SMP-700D-2400-8P 240 16 66 8
Bore (mm) Model Output (kW) Head (m) Capacity (㎥/min) Pole (P)
800 SMP-800A-1500-16P 150 8 80 16
SMP-800B-1900-14P 190 10 80 14
SMP-800C-2350-12P 235 12.5 80 12
SMP-800D-3000-10P 300 16 80 10
900 SMP-900A-1900-16P 190 8 100 16
SMP-900B-2350-14P 235 10 100 14
SMP-900C-2900-12P 290 12.5 100 12
SMP-900D-3800-10P 380 16 100 10
1000 SMP-1000A-2300-18P 230 8 125 18
SMP-1000B-2900-16P 290 10 125 16
SMP-1000C-3600-14P 360 12.5 125 14
SMP-1000D-4600-12P 460 16 125 12
1100 SMP-1100A-2750-20P 275 8 150 20
SMP-1100B-3450-18P 345 10 150 18
SMP-1100C-4300-14P 430 12.5 150 14
1200 SMP-1200A-3250-20P 325 8 180 20
SMP-1200B-4100-18P 410 10 180 18
SMP-1200C-5100-16P 510 12.5 180 16
1350 SMP-1350A-3800-24P 380 8 210 24
SMP-1350B-4750-20P 475 10 210 20
1500 SMP-1500A-4550-24P 455 8 250 24

Outline Dimensions

Unit : mm
ΦDB Model A B ΦC ΦD E F ΦG ΦH J K ΦL M
250 SMP-250A 1250 250 600 534 300 1200 700 1250 150 500 1150 10-Φ27
SMP-250B 1325 250 600 534 300 1200 700 1250 150 500 1150 10-Φ27
SMP-250C 1325 250 600 534 300 1200 700 1250 150 500 1150 10-Φ27
SMP-250D 1510 250 700 610 350 1500 800 1250 150 500 1150 12-Φ27
300 SMP-300A 1510 250 700 610 350 1500 800 1250 150 500 1150 12-Φ27
SMP-300B 1510 250 700 610 350 1500 800 1250 150 500 1150 12-Φ27
SMP-300C 1710 250 700 610 350 1500 800 1250 150 500 1150 12-Φ27
SMP-300D 1745 300 800 690 400 1600 900 1350 150 500 1250 12-Φ27
400 SMP-400A 1745 300 800 690 400 1600 900 1350 150 500 1250 12-Φ27
SMP-400B 1745 300 800 690 400 1600 900 1350 150 500 1250 12-Φ27
SMP-400C 1817 300 800 690 400 1600 900 1350 150 500 1250 12-Φ27
SMP-400D 1817 350 900 790 450 1800 1000 1450 200 600 1350 14-Φ27
500 SMP-500A 2122 350 900 790 450 1800 1000 1450 200 600 1350 14-Φ27
SMP-500B 2122 350 900 790 450 1800 1000 1450 200 600 1350 14-Φ27
SMP-500C 2122 350 900 790 450 1800 1000 1450 200 600 1350 14-Φ27
SMP-500D 2122 350 900 790 450 1800 1000 1450 200 600 1350 14-Φ27
600 SMP-600A 2421 350 900 790 450 1800 1000 1450 200 600 1350 14-Φ27
SMP-600B 2421 350 900 790 450 1800 1000 1450 200 600 1350 14-Φ27
SMP-600C 2532 350 900 790 450 1800 1000 1450 200 600 1350 14-Φ27
SMP-600D 2242 350 900 790 450 1800 1000 1450 200 600 1350 14-Φ27
700 SMP-700A 2420 400 1000 883 500 2000 1100 1550 200 700 1450 14-Φ27
SMP-700B 2580 400 1000 883 500 2000 1100 1550 200 700 1450 14-Φ27
SMP-700C 2580 400 1000 883 500 2000 1100 1550 200 700 1450 14-Φ27
SMP-700D 2730 400 1000 883 500 2000 1100 1550 200 700 1450 14-Φ27
800 SMP-800A 2730 400 1000 883 500 2000 1100 1550 200 700 1450 14-Φ27
SMP-800B 2952 400 1000 883 500 2000 1100 1550 200 700 1450 14-Φ27
SMP-800C 2952 400 1000 883 500 2000 1100 1550 200 700 1450 14-Φ27
SMP-800D 3035 400 1000 883 500 2000 1100 1550 200 700 1450 14-Φ27
900 SMP-900A 2295 450 1200 1094 600 2400 1300 1800 250 850 1700 16-Φ27
SMP-900B 2295 450 1200 1094 600 2400 1300 1800 250 850 1700 16-Φ27
SMP-900C 2950 450 1200 1094 600 2400 1300 1800 250 850 1700 16-Φ27
SMP-900D 3030 450 1200 1094 600 2400 1300 1800 250 850 1700 16-Φ27
1000 SMP-1000A 2935 450 1200 1094 600 2400 1300 1800 250 850 1700 16-Φ27
SMP-1000B 2935 450 1200 1094 600 2400 1300 1800 250 850 1700 16-Φ27
SMP-1000C 3035 450 1200 1094 600 2400 1300 1800 250 850 1700 16-Φ27
SMP-1000D 3035 450 1200 1094 600 2400 1300 1800 250 850 1700 16-Φ27
1100 SMP-1100A 4045 500 1350 1202 650 2600 1500 1950 250 900 1850 18-Φ27
SMP-1100B 4250 500 1350 1202 650 2600 1500 1950 250 900 1850 18-Φ27
SMP-1100C 4250 500 1350 1202 650 2600 1500 1950 250 900 1850 18-Φ27
1200 SMP-1200A 4450 500 1350 1202 650 2600 1500 1950 250 900 1850 18-Φ27
SMP-1200B 4450 500 1350 1202 650 2600 1500 1950 250 900 1850 18-Φ27
SMP-1200C 4750 500 1350 1202 650 2600 1500 1950 250 900 1850 18-Φ27
1350 SMP-1350A 4450 550 1500 1344 750 300 1600 2150 300 1000 2050 18-Φ27
SMP-1350B 4750 550 1500 1344 750 300 1600 2150 300 1000 2050 18-Φ27
1500 SMP-1500A 4750 600 1650 1476 900 3500 1800 2300 350 1100 2200 20-Φ27

※ In some cases, figures and performance are subject to change without prior notice.

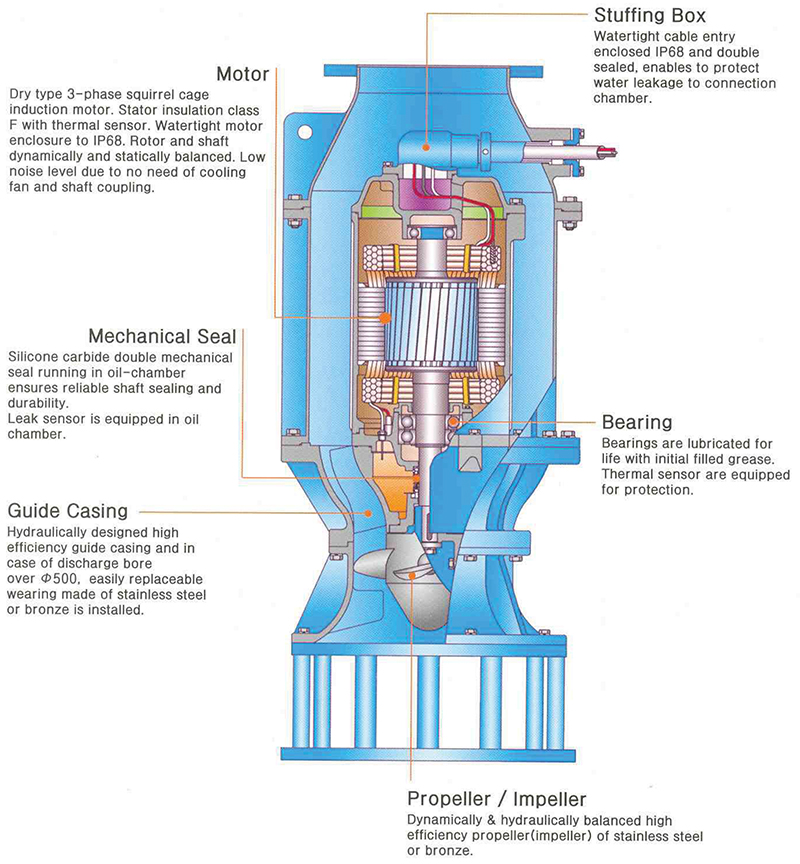

SX Series Top Discharge Flange Connection Type

Technical Specifications

Specification
Bore (mm) Model Model Output (kW) Head (m) Capacity (㎥/min) Pole (P)
200 SXP-200A-40-6P SXP 4.0 3.0 5.0 6
250 SXP-250A-65-6P SXP 6.5 3.0 8.0 6
300 SXP-300A-120-6P SXP 12.0 4.0 12.0 6
400 SXP-400A-200-6P SXP 20.0 4.0 20.0 6
500 SXP-500A-300-8P SXP 30.0 4.0 30.0 8
600 SXP-600A-450-10P SXP 45.0 4.0 45.0 10
200 SXM-200B-110-6P SXM 11.0 8.0 5.0 6
SXM-200C-165-4P SXM 16.5 12.5 5.0 4
SXM-200D-260-4P SXM 26.0 20.0 5.0 4
250 SXM-250B-165-6P SXM 16.5 8.0 8.0 6
SXM-250C-260-6P SXM 26.0 12.5 8.0 6
SXM-250D-400-6P SXM 40.0 20.0 8.0 4
300 SXM-300B-240-6P SXM 24.0 8.0 12.0 6
SXM-300C-370-6P SXM 37.0 12.5 12.0 6
SXM-300D-600-6P SXM 60.0 20.0 12.0 6
400 SXM-400B-400-8P SXM 40.0 8.0 20.0 8
SXM-400C-600-8P SXM 60.0 12.5 20.0 8
SXM-400D-1000-8P SXM 100.0 20.0 20.0 6
500 SXM-500B-600-10P SXM 60.0 8.0 30.0 10
SXM-500C-900-10P SXM 90.0 12.5 30.0 10
SXM-500D-1450-8P SXM 145.0 20.0 30.0 8
600 SXM-600B-900-12P SXM 90.0 8.0 45.0 12
SXM-600C-1350-12P SXM 135.0 12.5 45.0 12
SXM-600D-1250-12P SXM 215.0 20.0 45.0 10
Performance curve

Outline Dimensions

단위(Unit) : mm
Model ΦA B ΦC D E
SXP-200A-40-6P 200 1350 600 600 300
SXP-250A-65-6P 250 1350 600 700 300
SXP-300A-120-6P 300 1550 600 750 300
SXP-400A-200-6P 400 1860 700 850 400
SXP-500A-300-8P 500 1950 800 1000 500
SXP-600A-450-10P 600 2200 1000 1500 600
SXM-200B-110-6P 200 1380 600 700 300
SXM-200C-165-4P 200 1550 600 700 300
SXM-200D-260-4P 200 1750 600 700 300
SXM-250B-165-6P 250 1830 600 850 300
SXM-250C-260-6P 250 1950 600 850 300
SXM-250D-400-6P 250 1830 600 850 300
SXM-300B-240-6P 300 1950 600 1150 300
SXM-300C-370-6P 300 2050 600 1150 300
SXM-300D-600-6P 300 2150 600 1150 300
SXM-400B-400-8P 400 2050 700 1300 400
SXM-400C-600-8P 400 2450 700 1350 400
SXM-500B-600-10P 500 2250 800 1500 500
SXM-500C-900-10P 500 2450 800 1500 500
SXM-500D-1450-8P 500 2450 800 1600 500
SXM-600B-900-12P 600 2580 1000 1600 600
SXM-600C-1350-12P 600 2850 1000 1700 600
SXM-600D-1250-12P 600 3050 1000 1800 600

※ In some cases, figures and performance are subject to change without prior notice.
