LPZ Series

SAMJIN sealless canned motor pumps for LP gas have been manufactured by our research and development since 1988 as the pioneer in Korea. SAMJIN sealless canned motor pumps for LP gas have been developed by state of the art technology and thorough quality control as safe and reliable pumps for LP gas which have outstanding features such as leak proof and sealless etc. SAMJIN canned motor pumps for LP gas guarantee reliability and safe operation.

Features

Leakage free
As opposed to the conventional pumps, this type pump having neither mechanical seal nor shaft seal eliminates any danger and environmental pollution caused by LP gas leakage due to such to peck respectively.
Low noise and vibrations
Totally enclosed motor without motor fan and shaft coupling proves low noise level under 50dB and vibration under 20㎛ peak to peak respectively.
Low maintenance cost
No mechanical seal and no coupling alignment enable low maintenance cost.
Pressure change responding to flow change
Due to little change of discharge pressure, the gas filling speed is almost same despite the increase of dispenser numbers and thus it makes the efficient pump operation.
Safety protection device
The safety panel is designed and manufactured with an emphasis on safety for canned motor pumps for SAMJIN LP gas. It detects overload, reverse phase, phase loss, dry operation, overheating and ground fault, and stops pump operation in case of abnormality. Motor monitor for monitoring bearing wear, pump vibration, motor reverse rotation and pumps cumulative operation hours. Thermostat to protect motor from overheating by sensing excessively high temperature and to the motor.

Uses

LP gas filling station, oil refinery, petrochemicals and tanker ships etc.

Technical Specifications

50Hz Specifications
Pump Model Output
kW		 Speed
rpm		 Flow
ℓ/min		 Head
m		 Differential Pressur
kgf/㎠G		 NPSHr
m
Over Ground Type LI1C-21E5 3.7 3000 120 80 4.0 0.5
LI1C-22E5 5.5 3000 200 80 4.0 0.5
LI2G-31E5 11.0 3000 400 80 4.0 0.7
LI1D-31E5 11.0 3000 1000 55 2.9 2.0
LI3C-33E5 18.0 3000 1000 55 2.9 2.0
Submerged Type LS1A-12H5 1.5 3000 40 30 1.5 0.3
LS6A3-21E5 3.7 3000 120 80 4.0 0.4
LS6A4-22E5 5.5 3000 200 80 4.0 0.5
LS7A3-30E5 7.5 3000 400 80 4.5 0.5
LS7A4-31E5 11 3000 400 100 4.5 0.5

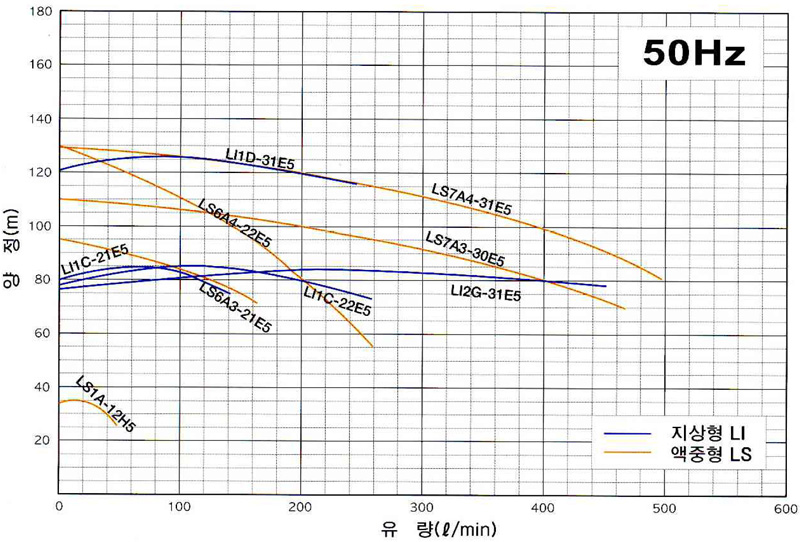

50Hz Performance Curves
60Hz Specifications
Pump Model Output
kW		 Speed
rpm		 Flow
ℓ/min		 Head
m		 Differential Pressur
kgf/㎠G		 NPSHr
m
Over Ground Type LI1B-21E6 3.7 3600 120 80 4.2 0.5
LI1B-22E6 5.5 3600 200 80 4.2 0.5
LI1C-30E6 7.5 3600 200 100 5.2 0.5
LI1C-31E6 11.0 3600 200 120 6.2 0.5
LI2G-31E6 11.0 3600 400 100 5.2 0.7
LI2G-32E6 15.0 3600 400 120 6.2 0.7
LI3C-33E6 18.0 3600 1000 75 3.9 2.0
Submerged Type LS1A-12H6 1.5 3600 40 30 1.5 0.3
LS6A3-21E6 3.7 3600 120 80 40 0.4
LS6A3-22E6 5.5 3600 200 80 40 0.4
LS6A4-22E6 5.5 3600 200 100 5.0 0.5
LS7A2-30E6 7.5 3600 400 80 4.5 0.5
LS7A3-31E6 11.0 3600 500 100 5.2 0.5

Power source : 3Phase-60Hz-220/230/380/440/460/480V

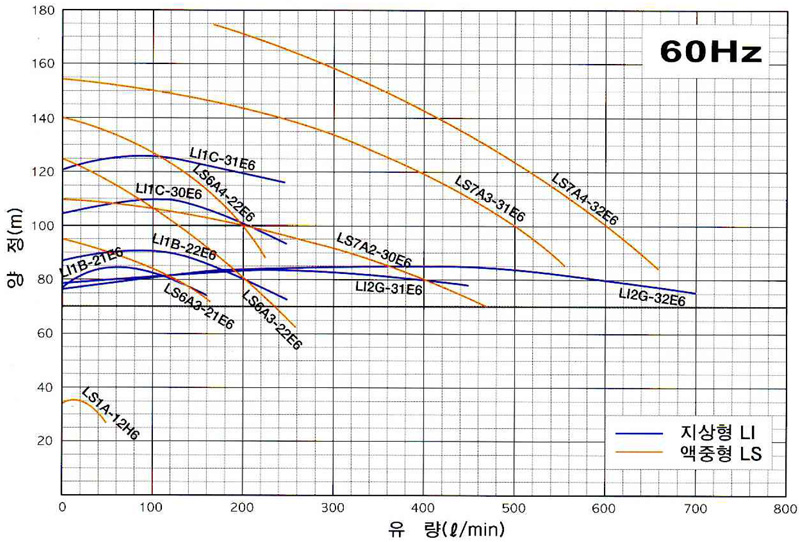

60Hz Performance Curves

Outline Dimensions

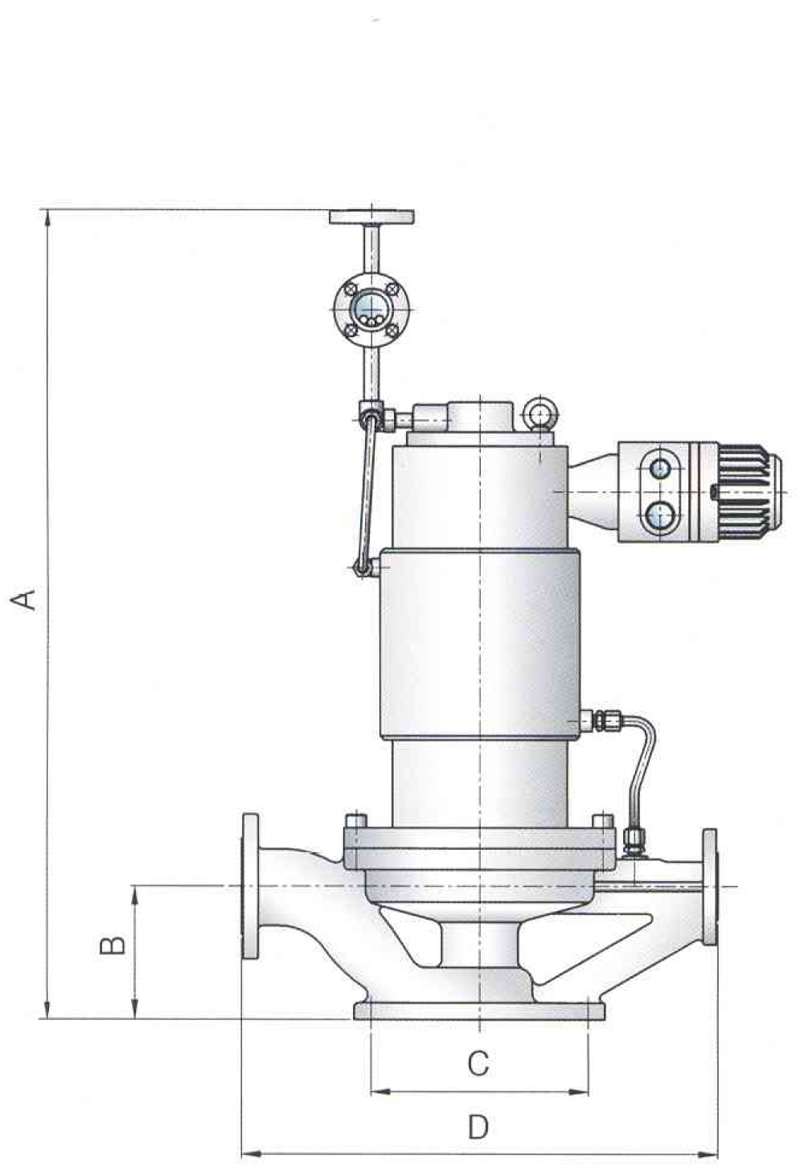

Over Ground Type

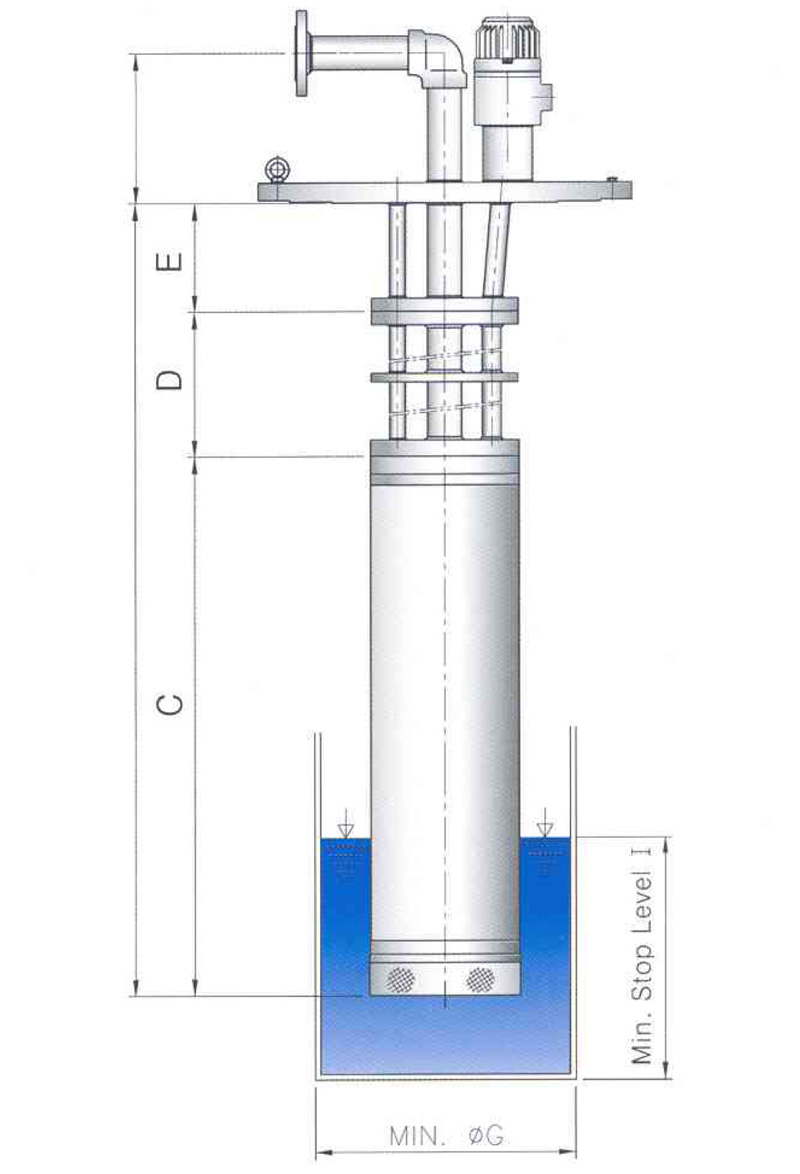

Submerged Type
Unit : mm
Pump Model A B C D E G I
Over Ground Type LI1B-21E6 870 160 260 570 - - -
LI1B-22E6 900 160 260 570 - - -
LI1C-21E5 870 160 260 570 - - -
LI1C-22E5 900 160 260 570 - - -
LI1C-30E6 925 160 260 570 - - -
LI1C-31E6 975 160 260 570 - - -
LI1D-31E5/6 975 160 260 570 - - -
LI2G-31E5/6 1000 165 320 550 - - -
LI2G-32E6 1080 165 320 550 - - -
LI2G-33E5/6 1150 165 320 550 - - -
Submerged Type LS1A-12H5/6 2000~4500 156 1035 765~3265 200 300 300
LS6A3-21E5/6 2000~4500 156 760 1040~3540 200 300 300
LS6A3-22E6 200~4500 156 770 1030~3530 200 300 300
LS6A4-22E5/6 200~4500 156 840 960~3460 200 450 350
LS7A2-30E6 200~4500 156 931 869~3369 200 450 350
LS7A3-30E5 200~4500 156 999 801~3301 200 450 350
LS7A3-31E6 200~4500 156 999 801~3301 200 450 350
LS7A4-31E5 200~4500 156 1067 733~3233 200 450 350

Side View Illustration

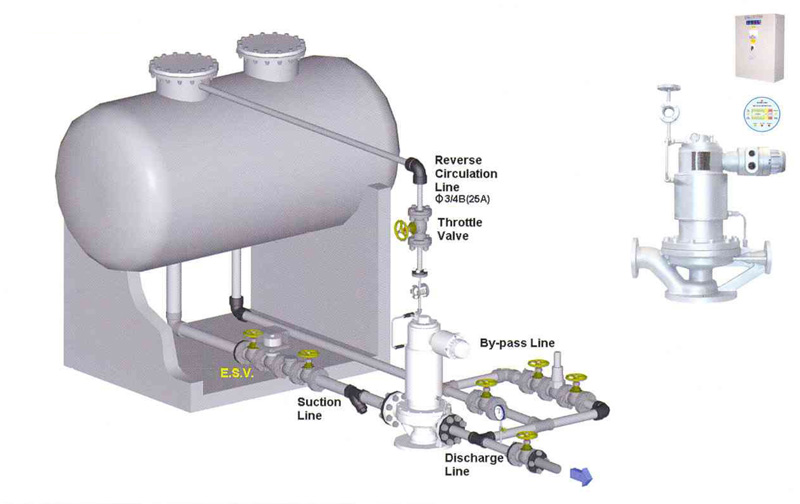

Over Ground Type

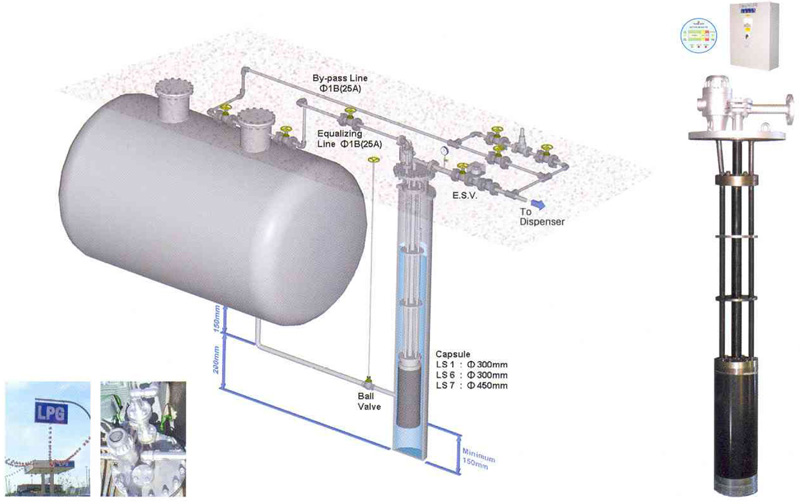

Submerged Type
